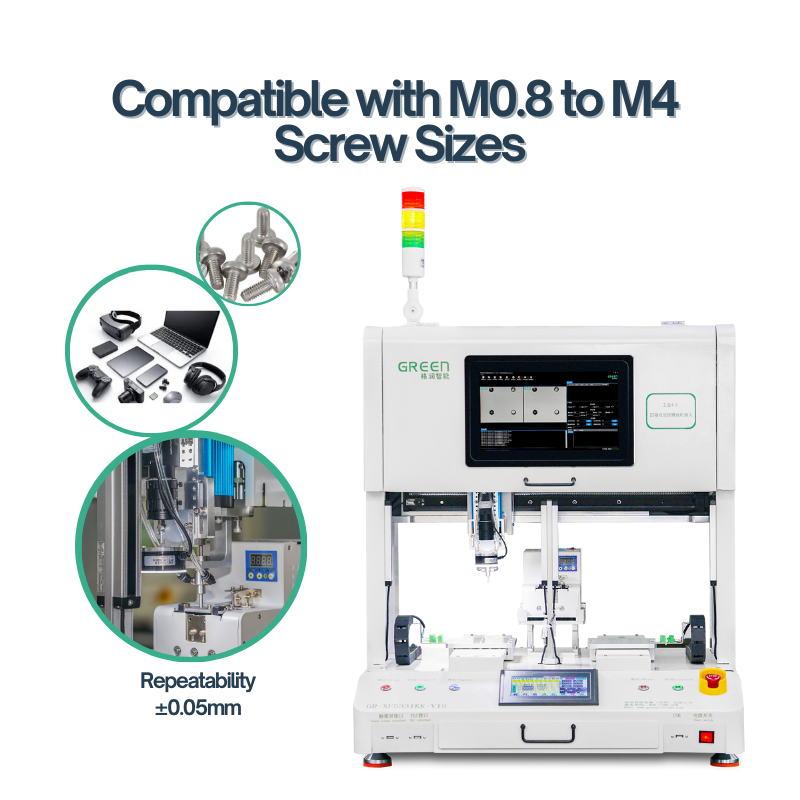

Desktop 4-Axis Vacuum Pickup Vision Guided Screwdriving Machine GR-XF5331KK-VIS

Send email to us

Product Detail

Product Tags

What is the size range of the screws?

How many fastening points are there? What is their distribution like?

Send email to us

Technical Speciﬁcation

Model	GR-XF5331KK-VIS	GR-XF6441KK-VIS	GR-XF6661KK-VIS	GR-XF8441KK-VIS
Stroke(xYZ)	500300300*100mm	600400400*100mm	600600600*100mm	800400400*100mm
Y Axis Load	10Kg
Axis Travel Speed	0-1200mm/s
Repeatability	±0.02mm
Program Storage Capacity	999
Coordinate Setting Method	Visual Positioning
Fastening Efficiency	0.9-1.2S Cycle Time: ~0.9-1.2S
Power Supply	≈1KW
Working Air Supply	AC220V
Power Consumption	0.4-0.7MPa
Total Machine Weight	≈80kg
Overall Dimensions	785680900mm	885780900mm	885980900mm	1085780900mm

Standard Configuration

Drive Method	Servo Motor+KK Ball Screw, Repeatability ±0.02mm

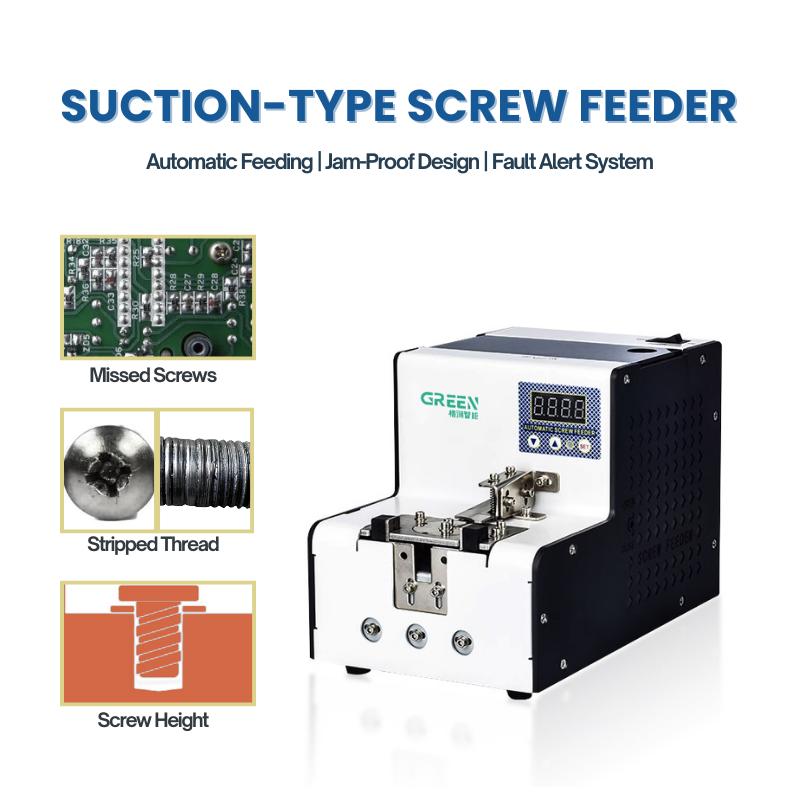

Feeder	Vacuum Feeder
Electric Screwdriver	Smart Electric Screwdriver
Display Mode	Industrial Panel PC+ Keyboard & Mouse
Electrical Control Method	PLC+ PC+ Vision System

What is the size range of the screws?

How many fastening points are there? What is their distribution like?

Send email to us

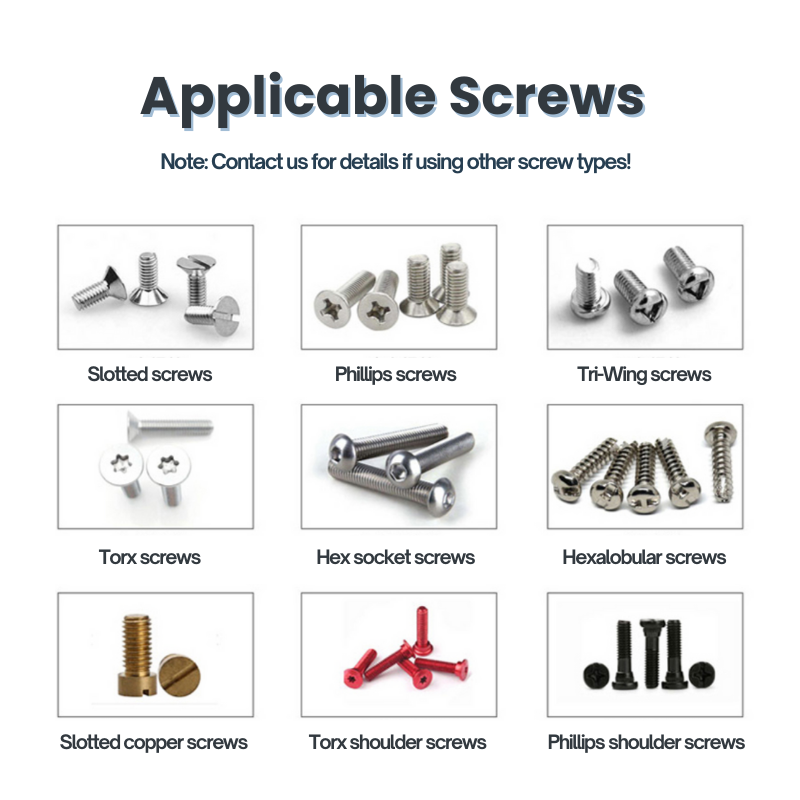

industrial Screwdriver Machine for applicable screws

What is the size range of the screws?

How many fastening points are there? What is their distribution like?

Send email to us

Application

Mobile Phones, Automotive Electronics, Tablets, Wireless Charging, E-Cigarettes, Smart Watches, Wearable Devices,Remote Controls Cameras, Routers, Set-Top Boxes, Game Controllers, POS Machines, etc.
